Inventory

Properties


Name	Description	Optional	Valid Value	Starting Version
uuid	The UUID. For more information, see Resource Property.			0.6
name	The name. For more information, see Resource Property.			0.6
description	The description. For more information, see Resource Property.	Yes		0.6
zoneUuid	The UUID of the parent zone. For more information, see Zone.			0.6
physicalInterface	The physical interface. For more information, see Physical Interface.			0.6
type	The L2 network type.		L2NoVlanNetwork L2VlanNetwork VxlanNetworkPool VxlanNetwork	0.6
attachedClusterUuids	The clusters to which the L2 network is attached. For more information, see Attach Cluster.			0.6
createDate	The creation date. For more information, see Resource Property.			0.6
lastOpDate	The last operation date. For more information, see Resource Property.			0.6

Sample

{
    "inventories": [
        {
            "attachedClusterUuids": [
                "553c2fd2a67b4b89a6240541959b861f"
            ],
            "createDate": "Mar 10, 2018 2:35:14 PM",
            "description": "",
            "lastOpDate": "Mar 10, 2018 2:35:14 PM",
            "name": "L2Network-1",
            "physicalInterface": "eth0",
            "type": "L2NoVlanNetwork",
            "uuid": "dde9685e3ba944bea8c643fe64200750",
            "zoneUuid": "fa18454182eb41749797f824c00cfccf"
        }
    ],
    "success": true
}

Physical Interface

A physical interface is a string, such as eth0. The string contains information about the related L2 network in the data center. Normally, different types of the L2 network and different types of hypervisors have different physical interfaces. This is because the hypervisors use their own notations to describe L2 networks, and an L2 network can be simultaneously attached to multiple clusters of different hypervisor types.

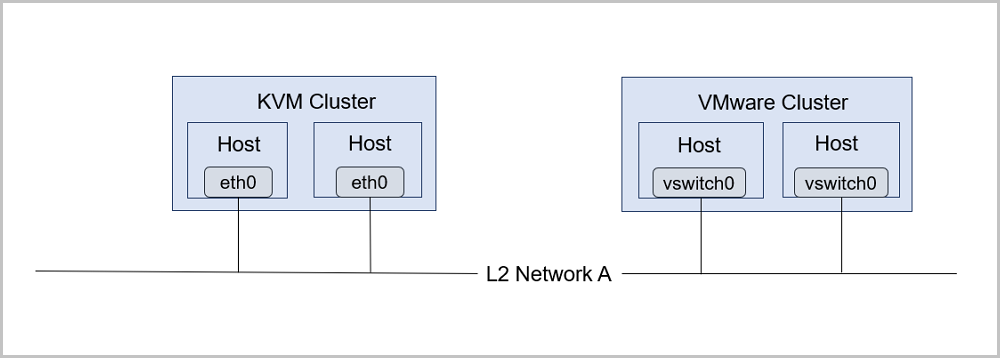

Assume that a data center has an L2 network (L2 Network A). L2 Network A can be used across two clusters: the KVM cluster and the VMware cluster. In the KVM cluster, L2 Network A is realized by an Ethernet device in Linux operating system. In this example, assume that each KVM instance can connect to L2 Network A by using eth0. In the VMware cluster, L2 Network A is realized by vSwitch. In this example, assume that the VMware cluster can connect to L2 Network A by using vswitch0. In this regard, the entire topology can be shown as L2 Network Topology.

Many operations seemingly applied to zones and clusters are actually delegated to hosts. Here, when L2 Network A is attached to the KVM cluster and the VMware cluster, ZStack Cloud must understand how the hypervisor in these clusters use the notations to describe the L2 network. That is, eth0 on the KVM host represents the L2 network, while vswitch0 on the VMware host also represents the L2 network. Therefore, the name of a physical interface can also reflect different hypervisors.

Attach Cluster

Attaching a cluster is to associate an L2 network with the sibling clusters in the same zone. Attaching a cluster provides a flexible solution to maintain the relation between hosts and L2 networks in a data center, as shown in Attach Cluster.

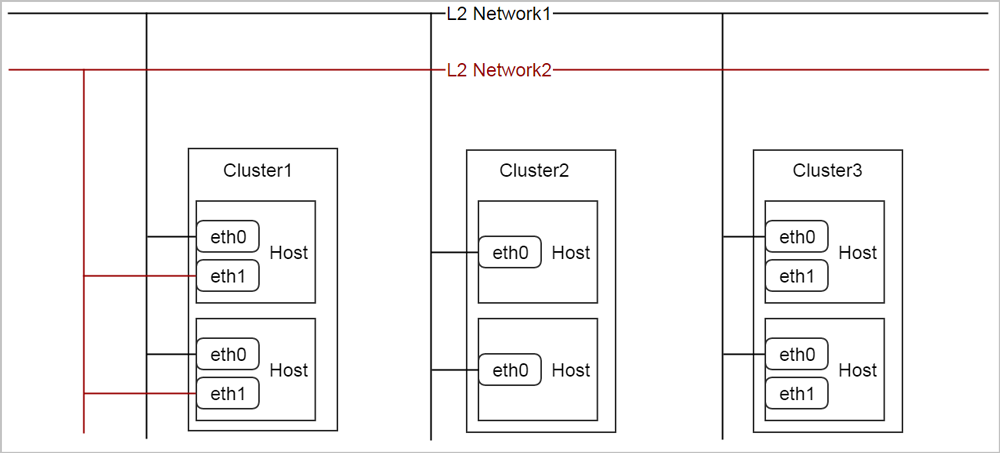

Assume that the network topology in your data center is as the above. The eth0s of the hosts in all clusters are on the same L2 network (L2 Network1), while eth1s of the hosts in Cluster1 and Cluster3 are on another L2 network (L2 Network2). To describe this topology in ZStack Cloud, you can attach L2 Network1 to all the three clusters, and attach only L2 Network2 to Cluster1 and Cluster3.

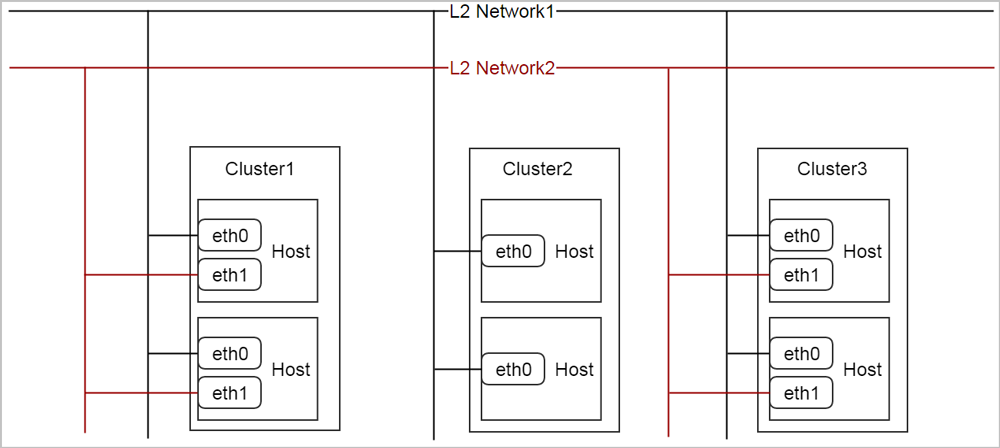

Several months later, due to some business needs, you can make some modifications to the network topology. You need to unplug the Ethernet cables connected by eth1s of the hosts in Cluster3 from the rack switch. Then, you will no longer connect Cluster3 with L2 Network2. You can detach L2 Network2 from Cluster3, and notify ZStack Cloud of the network topology change, as shown in Modify the Attached Cluster.

L2NoVlanNetwork

L2NoVlanNetwork is a basic type of L2 network. NoVlan in L2NoVlanNetwork does not mean that you cannot use the VLAN technology. Contrarily, it simply means that ZStack Cloud will not take the initiative to use VLAN to create a layer 2 broadcast domain. The following two topologies can help you better understand the L2NoVlanNetwork.

As shown in Configuration of L2NoVlanNetwork 1.

Figure 4. Configuration of L2NoVlanNetwork 1

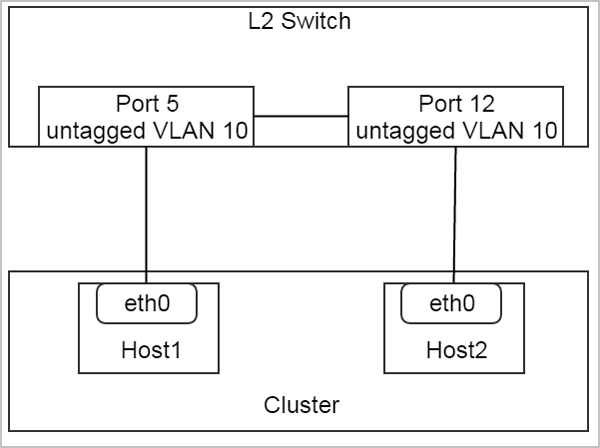

In the figure above, both Port 5 and Port 12 in L2 Switch are untagged with VLAN 10 (access port with VLAN 10 in Cisco term), and connect to eth0 on Host1 and Host2 respectively. This is an effective configuration for L2NoVlanNetwork. You can use physicalInterface = eth0 to create an L2NoVlanNetwork, and attach it to Cluster.

As shown in Configuration of L2NoVlanNetwork 2.

Figure 5. Configuration of L2NoVlanNetwork 2

In the figure above, both Port 5 and Port 12 in L2 Switch are tagged with VLAN 10 (trunk port with VLAN 10 in Cisco term), and connect to eth0.10 (a pre-created VLAN device) on Host1 and Host2 respectively. This is also an effective configuration for L2NoVlanNetwork. You can use physicalInterface = eth0.10 to create an L2NoVlanNetwork, and attach it to Cluster.

That is, one L2NoVlanNetwork corresponds to a pre-created layer 2 broadcast domain. ZStack Cloud will not create any new broadcast domain for an L2NoVlanNetwork.

L2NoVlanNetwork KVM Specifications

When you attach an L2NoVlanNetwork to a KVM cluster, the physicalInterface must be the Ethernet device name in a Linux operating system, such as eth0, eth0.10, and em1. When you create a bridge in ZStack Cloud by running the brctl command, note that the physicalInterface will be used as the device name. The pseudo codes are as follows:

Assuming physicalInterface = eth0

brctl create br_eth0
brctl addif br_eth0 eth0

L2NoVlanNetwork Inventory Sample

{
    "inventories": [
        {
            "attachedClusterUuids": [
                "967a353c2893409dab9312cf3033a98c"
            ],
            "createDate": "Oct 30, 2017 1:53:20 PM",
            "description": "",
            "lastOpDate": "Oct 30, 2017 1:53:20 PM",
            "name": "L2NoVlan",
            "physicalInterface": "eth0",
            "type": "L2NoVlanNetwork",
            "uuid": "5f0391e0c7ed45dba5ee5ed9c638f146",
            "zoneUuid": "e59b71e99d8a4ea1952b578388b8cd1d"
        }
    ],
    "success": true
}

L2VlanNetwork

L2VlanNetwork is an L2 network that ZStack Cloud will actively create a layer 2 broadcast domain by using VLAN. According to the different hypervisor types in a cluster, ZStack Cloud will use different methods to create layer 2 broadcast domains for L2 networks. Compared with l2Network inventory, an L2VlanNetwork has the following additional property.


Name	Description	Optional	Valid Value	Starting Version
vlan	The VLAN ID for creating a layer 2 broadcast domain.		[0, 4095]	0.6

When you attach an L2VlanNetwork to a cluster, note that ZStack Cloud will create a VLAN device on the host in the cluster. To make this operation take effect, make sure that the switch port to which the Ethernet device specified by physicalInterface connects has a VALN tag.

As shown in Configuration of L2VlanNetwork.

Figure 6. Configuration of L2VlanNetwork

In the figure above, both Port 5 and Port 12 of L2 Switch are tagged with VLAN 10. You can use physicalInterface = eth0 and vlan = 10 to create an L2VlanNetwork, and attach it to Cluster.

L2VlanNetwork KVM Specifications

When you attach L2VlanNetwork to a KVM cluster, note that ZStack Cloud will create a VLAN device and a bridge on all hosts in a cluster. The pseudo codes are as follows:

Assuming physicalInterface = eth0, vlan = 10

vconfig add eth0 10
brctl create br_eth0_10
brctl addif br_eth0_10 eth0.10

L2VlanNetwork Inventory Sample

{
    "inventories": [
        {
            "attachedClusterUuids": [],
            "createDate": "Oct 30, 2017 1:41:19 PM",
            "description": "",
            "lastOpDate": "Oct 30, 2017 1:41:19 PM",
            "name": "L2Vlan",
            "physicalInterface": "eth0",
            "type": "L2VlanNetwork",
            "uuid": "ae97ba4adcb7404690344dde407b429c",
            "vlan": 2222,
            "zoneUuid": "e59b71e99d8a4ea1952b578388b8cd1d"
        }
    ],
    "success": true
}

SDN Controller Inventory


Name	Description	Optional	Starting Version
uuid	The UUID. For more information, see Resource Property.		3.7.0
name	The name. For more information, see Resource Property.		3.7.0
description	The description. For more information, see Resource Property.	Yes	3.7.0
ip			3.7.0
password	The password.		3.7.0
username			3.7.0
vendorType			3.7.0
vniRanges			3.7.0
vxlanPools			3.7.0
groupBy	Groups rows into subgroups based on values of columns or expressions. This field is equivalent to the Group By clause in MySQL, such as groupBy=type.	Yes	3.7.0
createDate	The creation date. For more information, see Resource Property.		3.7.0
lastOpDate	The last operation date. For more information, see Resource Property.		3.7.0
userTags	The user tags. The For more information, see CreateUserTag.	Yes	3.7.0
systemTags	The system tags. For more information, see CreateSystemTag.	Yes	3.7.0

Sample

{
    "inventories": [
        {
            "createDate": "Oct 23, 2019 3:17:40 PM",
            "ip": "172.20.12.165",
            "lastOpDate": "Oct 23, 2019 3:17:40 PM",
            "name": "gtt",
            "password": "Password",
            "username": "shixin",
            "uuid": "5ce966372dde4169865474b88973a9d8",
            "vendorType": "H3C VCFC",
            "vniRanges": [
                {
                    "endVni": 3000,
                    "startVni": 3000
                },
                {
                    "endVni": 2009,
                    "startVni": 10
                }
            ],
            "vxlanPools": [
                {
                    "attachedCidrs": {},
                    "attachedClusterUuids": [
                        "f34570997a594344ad698280305a1a9a"
                    ],
                    "attachedVniRanges": [
                        {
                            "createDate": "Oct 23, 2019 3:17:52 PM",
                            "endVni": 29,
                            "l2NetworkUuid": "0b03b34eb79b46d99d2c0aa074bc2385",
                            "lastOpDate": "Oct 23, 2019 3:17:52 PM",
                            "name": "gtt",
                            "startVni": 23,
                            "uuid": "3691fb6e4d194eb39d9c49dc3c780816"
                        }
                    ],
                    "attachedVtepRefs": [],
                    "attachedVxlanNetworkRefs": [],
                    "createDate": "Oct 23, 2019 3:17:52 PM",
                    "description": "",
                    "lastOpDate": "Oct 23, 2019 3:17:52 PM",
                    "name": "gtt",
                    "physicalInterface": "eth0",
                    "sdnControllerUuid": "5ce966372dde4169865474b88973a9d8",
                    "type": "hardware-vxlan-pool",
                    "uuid": "0b03b34eb79b46d99d2c0aa074bc2385",
                    "zoneUuid": "182bd537a902404a94f6412d285d277e"
                }
            ]
        }
    ],
    "success": true
}
