Inventory

Properties


Name	Description	Optional	Valid Value	Starting Version
uuid	The UUID. For more information, see Resource Property.			0.6
name	The name. For more information, see Resource Property.			0.6
description	The description. For more information, see Resource Property.	Yes		0.6
zoneUuid	The parent zone UUID.			0.6
totalCapacity	The total disk capacity. Unit: byte.			0.6
availableCapacity	The available disk capacity. Unit: byte.			0.6
url	The URL. For more information, see URL.			0.6
type	The primary storage type.		SharedMountPoint XSky Ceph NFS ZSES VCenter LocalStorage	0.6
state	The state. For more information, see State.		Enabled Disabled	0.6
status	The status. For more information, see Status.		Connecting Connected Disconnected	0.6
attachedClusterUuids	The UUIDs of clusters to which the primary storage is attached.			0.6
createDate	The creation date. For more information, see Resource Property.			0.6
lastOpDate	The last operation date. For more information, see Resource Property.			0.6

Sample

{
    "inventories": {
            "attachedClusterUuids": [
                "967a353c2893409dab9312cf3033a98c"
            ],
            "availableCapacity": 152897413120,
            "availablePhysicalCapacity": 186166145024,
            "createDate": "Oct 30, 2017 3:05:29 PM",
            "description": "",
            "lastOpDate": "Oct 31, 2017 10:41:26 AM",
            "mountPath": "/Cloud_ps",
            "name": "LS-1",
            "state": "Enabled",
            "status": "Connected",
            "systemUsedCapacity": 9330311168,
            "totalCapacity": 205177397248,
            "totalPhysicalCapacity": 205177397248,
            "type": "LocalStorage",
            "url": "/Cloud_ps",
            "uuid": "037bd212f7a1488da4f94360ccfaf6ab",
            "zoneUuid": "e59b71e99d8a4ea1952b578388b8cd1d"
        }
}

Table 1. Shared Block Primary Storage Inventory
Name	Description	Optional	Valid Value	Starting Version
uuid	The UUID. For more information, see Resource Property.			2.3.2
name	The name. For more information, see Resource Property.			2.3.2
description	The description. For more information, see Resource Property.	Yes		2.3.2
zoneUuid	The zone UUID.			2.3.2
url	The reserved field.			2.3.2
totalCapacity	The total disk capacity. Unit: byte.			2.3.2
availableCapacity	The available capacity. Unit: byte.			2.3.2
totalPhysicalCapacity	The total physical capacity.			2.3.2
availablePhysicalCapacity	The available physical capacity.			2.3.2
systemUsedCapacity	The system used capacity.			2.3.2
type	The primary storage type.		sharedblock	2.3.2
state	The state. For more information, see State.			2.3.2
status	The status. For more information, see Status.			2.3.2
mountPath	The reserved field.			2.3.2
attachedClusterUuids	The attached clusters.			2.3.2
sharedBlocks				2.3.2
sharedBlockGroupType				2.3.2
createDate	The creation date. For more information, see Resource Property.			2.3.2
lastOpDate	The last operation date. For more information, see Resource Property.			2.3.2
groupBy	Groups rows into subgroups based on values of columns or expressions. This field is equivalent to the Group By clause in MySQL, such as groupBy=type.	Yes		2.3.2
userTags	The user tags. For more information, see CreateUserTag.	Yes		2.3.2
systemTags	The system tags. For more information, see CreateSystemTag.	Yes		2.3.2

Sample:

{
    "inventories": [
        {
            "attachedClusterUuids": [
                "4fe9c130224c4e59b0e8f3c5154c2cf6"
            ],
            "availableCapacity": 401458101248,
            "availablePhysicalCapacity": 400363094016,
            "createDate": "Jul 19, 2018 7:59:08 PM",
            "description": "",
            "lastOpDate": "Jul 19, 2018 8:01:37 PM",
            "mountPath": "SharedBlock",
            "name": "ps2-cluster3",
            "sharedBlockGroupType": "LvmVolumeGroupBasic",
            "sharedBlocks": [
                {
                    "createDate": "Jul 19, 2018 7:59:08 PM",
                    "diskUuid": "scsi-360014056cc00bd98c3740eeb9955af2c",
                    "lastOpDate": "Jul 19, 2018 7:59:08 PM",
                    "name": "disk-scsi-360014056cc00bd98c3740eeb9955af2c",
                    "sharedBlockGroupUuid": "17edb2c2f5b841069d043a28758434f6",
                    "state": "Enabled",
                    "status": "Connected",
                    "type": "LvmLogicalVolumeBasic",
                    "uuid": "37ce4c4747914c01919f5474d1c7edfe"
                },
],
            "state": "Enabled",
            "status": "Connected",
            "totalCapacity": 639883018240,
            "totalPhysicalCapacity": 639883018240,
            "type": "SharedBlock",
            "url": "sharedblock://ec6a1dbaf6d645a182e1f0e393eb0761",
            "uuid": "ec6a1dbaf6d645a182e1f0e393eb0761",
            "zoneUuid": "ddad0dc2c4bd4ffbb53147ea3dbf15c3"
        }
    ],
    "success": true
}

Table 2. Shared Block Primary Storage and Host Reference Inventory
Name	Description	Optional	Valid Value	Starting Version
primaryStorageUuid	The primary storage UUID.			2.3.2
hostUuid	The host UUID.			2.3.2
hostId	The host ID.			2.3.2
status	The status. For more information, see Status.		Connecting Connected Disconnected	2.3.2
createDate	The creation date. For more information, see Resource Property.			2.3.2
lastOpDate	The last operation date. For more information, see Resource Property.			2.3.2
groupBy	Groups rows into subgroups based on values of columns or expressions. This field is equivalent to the Group By clause in MySQL, such as groupBy=type.	Yes		2.3.2
userTags	The user tags. For more information, see CreateUserTag.	Yes		2.3.2
systemTags	The system tags. For more information, see CreateSystemTag.	Yes		2.3.2

Sample:

{
    "inventories": [
        {
            "createDate": "Jul 19, 2018 7:59:09 PM",
            "hostId": 85,
            "hostUuid": "18fb1cf9713a4a50baf95fbaf37bfba6",
            "lastOpDate": "Jul 19, 2018 7:59:09 PM",
            "primaryStorageUuid": "17edb2c2f5b841069d043a28758434f6",
            "status": "Connected"
        }
    ],
    "success": true
}

Table 3. Shared Block Inventory
Name	Description	Optional	Valid Value	Starting Version
uuid	The UUID. For more information, see Resource Property.			2.3.2
name	The name. For more information, see Resource Property.			2.3.2
description	The description. For more information, see Resource Property.	Yes		2.3.2
sharedBlockGroupUuid	The LUN group UUID.			2.3.2
diskUuid	The unique identifier of the disk. For example, UUID, WWN, and WWID.			2.3.2
type	The primary storage type.		sharedblock	2.3.2
state	The state. For more information, see State.			2.3.2
status	The status. For more information, see Status.			2.3.2
createDate	The creation date. For more information, see Resource Property.			2.3.2
lastOpDate	The last operation date. For more information, see Resource Property.			2.3.2
groupBy	Groups rows into subgroups based on values of columns or expressions. This field is equivalent to the Group By clause in MySQL, such as groupBy=type.	Yes		2.3.2
userTags	The user tags. For more information, see CreateUserTag.	Yes		2.3.2
systemTags	The system tags. For more information, see CreateSystemTag.	Yes		2.3.2

Sample:

{
    "inventories": [
        {
            "createDate": "Jul 17, 2018 8:50:14 PM",
            "diskUuid": "lvm-pv-uuid-h6Zlks-feeq-Jonz-eXLw-tyso-NPXn-6B6jfs",
            "lastOpDate": "Jul 17, 2018 8:50:14 PM",
            "name": "disk-lvm-pv-uuid-h6Zlks-feeq-Jonz-eXLw-tyso-NPXn-6B6jfs",
            "sharedBlockGroupUuid": "ec6a1dbaf6d645a182e1f0e393eb0761",
            "state": "Enabled",
            "status": "Connected",
            "type": "LvmLogicalVolumeBasic",
            "uuid": "08dad40070054309b00d2174a1476675"
        }
],
    "success": true
}

Capacity

ZStack Cloud monitors disk capacities of primary storages to select one suitable primary storage for creating volumes. Different primary storage plugins may report different disk capacities.

For primary storages that support over-provisioning, the reported capacity will be larger than the actual capacity.
For primary storages that do not support over-provisioning, the reported capacity may be smaller than or equal to the actual capacity.

NFS Capacity

NFS does not support over-provisioning. Therefore, the NFS capacity is calculated by volumes' virtual sizes according to the following formulas:

totalCapacity = NFS's total capacity
availableCapacity = totalCapacity - sum (volumes' virtual sizes)

Simply put, a volume's virtual size is the size when a volume is fully filled. For example, when you create a volume with 1 GB capacity, its actual size may be 10 MB due to the thin-provisioning technology before the volume is fully filled.

URL

A URL is a string that contains information needed by primary storage to control storage systems. Although its name is URL, the exact format of the string is up to primary storage types and is not necessary to strictly follow the URL convention. This gives flexibilities to plugins to encode information that may not be able to fit in the URL format.

NFS URL

For an NFS primary storage, the URL is encoded as follows:

nfs server ip/dns:/absolute path to directory

For example,

192.168.0.220:/storage/nfs/

State

A primary storage has the following two states:

Enabled
Indicates that volumes can be created.
Disabled
Indicates that volumes cannot be created.

Status

Similar to host status, primary storage status reflects the status of command channels between ZStack Cloud management nodes and primary storages. Command channels are the ways ZStack Cloud management nodes communicate with storage systems represented by primary storage. Different primary storage types can have different command channels. For example, a command channel can be HTTP connections among ZStack Cloud management nodes and primary storage agents or communication methods provided by storage SDKs.

A primacy storage has the following three statuses:

Connecting:
Indicates that a ZStack Cloud management node is trying to establish a command channel between the node itself and a primary storage. At this stage, you cannot perform any operation on the primary storage.
Connected:
Indicates that the command channel between a ZStack Cloud management node and a primary storage is established successfully. At this stage, you can perform related operations on the primary storage.
Disconnected:
Indicates that the command channel between a ZStack Cloud management node and a primary storage is lost. At this stage, you cannot perform any operation on the primary storage.

When a ZStack Cloud management node starts, the management node will try to establish command channels to primary storages. When the management node is running, it will periodically send ping commands to the primary storages to check the health status of command channels. Once a primary storage fails to respond, or a ping command times out, the status of the primary storage will be changed to Disconnected.

The status transition diagram of a primary storage is shown in Status Transition Diagram of Primary Storage.

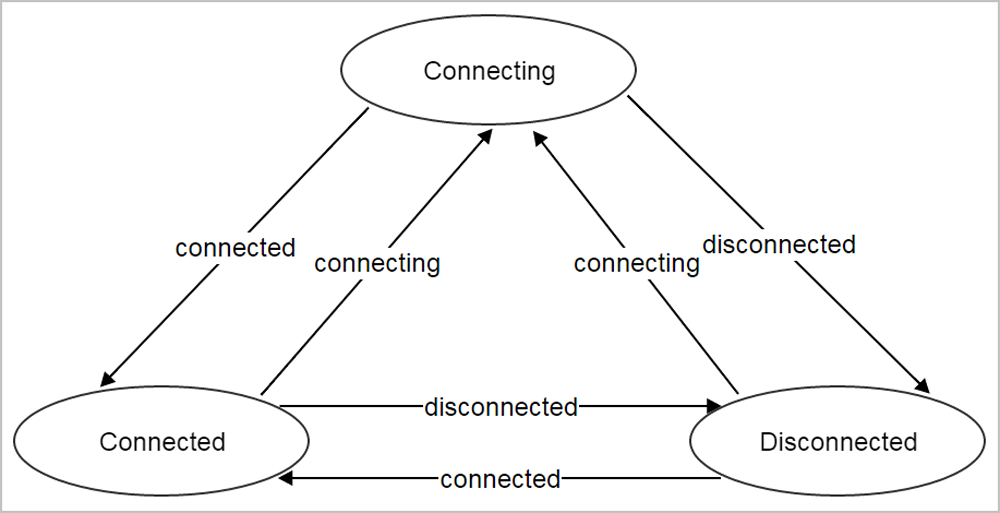

Figure 1. Status Transition Diagram of Primary Storage

State

The states have no direct relation to the statuses. States represent your decisions on a primary storage, while statuses represent the communication condition of a primary storage.

Attaching Cluster

Attaching clusters is to associate primary storage to sibling clusters. This provides a flexible method to maintain relations between hosts and storage systems in a real data center. For example, assume that a cluster (cluster A) is attached to an NFS primary storage (NFS1), as shown in Attach a Cluster to NFS Primary Storage.

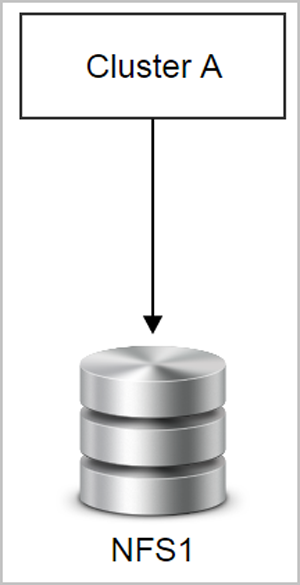

Figure 2. Attach a Cluster to NFS Primary Storage

After a period of time, Cluster A is running out of memory, but NFS1 still has sufficient disk spaces. So you decide to create another cluster (Cluster B) and then attach NFS1 to Cluster B, as shown in Attach Multiple Clusters to NFS Primary Storage.

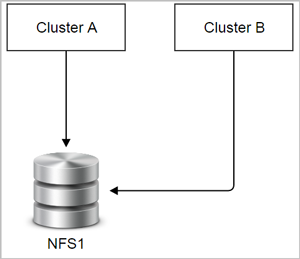

Figure 3. Attach Multiple Clusters to NFS Primary Storage

After another period of time, the hardware of Cluster A becomes outdated, and you decide to stop using Cluster A. Then, you attach a new, stronger cluster (Cluster C) to NFS1, and set all VM instances in Cluster A to maintenance mode. In this regard, all VM instances that are running in Cluster A will be migrated to Cluster B or Cluster C. Finally, you detach NFS1 from Cluster A, and then delete Cluster A. Now, the data center in shown in Migrated Data Center.

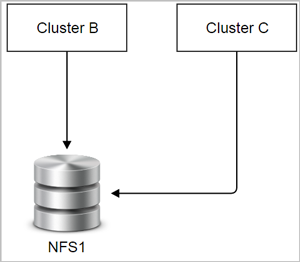

Finally, NFS1 is running out of capacity, you add another NFS primary storage (NFS2), and attach it to both Cluster B and Cluster C, as shown in Attach Multiple Clusters to Multiple NFS Primary Storages.

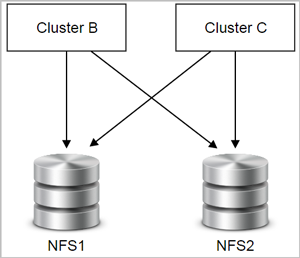

Figure 5. Attach Multiple Clusters to Multiple NFS Primary Storages
