清单
属性
| 名字 | 描述 | 可选的 | 可选的参数值 | 起始支持版本 |
|---|---|---|---|---|
| uuid | 请参见 资源属性 | 0.6 | ||
| name | 请参见 资源属性 | 0.6 | ||
| description | 请参见 资源属性 | 是 | 0.6 | |
| primaryStorageUuid | 云盘所在的主存储的uuid， 请参见 primary storage | 0.6 | ||
| vmInstanceUuid | 云盘所挂载的虚拟机的uuid，如果没有挂载虚拟机为NULL； 请参见 attach VM | 是 | 0.6 | |
| diskOfferingUuid | 云盘规格（disk offering）的uuid， 如果云盘是从云盘规格创建出来的 | 是 | 0.6 | |
| rootImageUuid | 镜像（image）的uuid， 如果云盘是从一个镜像创建出来的 | 是 | 0.6 | |
| installPath | 云盘在主存储上的安装路径 | 0.6 | ||
| type | 云盘的类型 |
|
0.6 | |
| format | 请参见 format |
|
0.6 | |
| size | 云盘的虚拟大小， 单位是字节 | 0.6 | ||
| actualSize | 0.6 | |||
| isShareable | 0.6 | |||
| deviceId | 请参见 device id | 是 | 0.6 | |
| state | 请参见 state |
|
0.6 | |

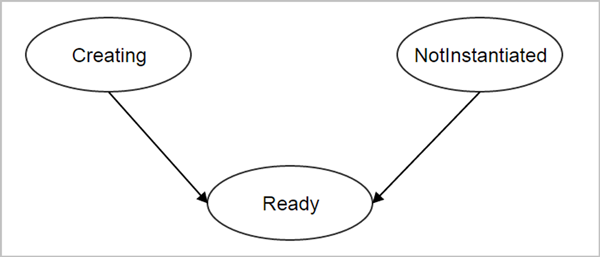

| status | 请参见 status |
|
0.6 | |
| createDate | 请参见 资源属性 | 0.6 | ||
| lastOpDate | 请参见 资源属性 | 0.6 |
示例
{
"inventories": [
{
"actualSize": 454033408,
"createDate": "Nov 14, 2017 1:21:32 PM",
"description": "Root volume for VM[uuid:7096021b405e41a2afa22d0f6d7ab6f8]",
"deviceId": 0,
"format": "qcow2",
"installPath": "/Cloud_ps_nxs/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-c33a897
db91e461a9cbc011b0aa441c9/c33a897db91e461a9cbc011b0aa441c9.qcow2",
"isShareable": false,
"lastOpDate": "Nov 14, 2017 1:21:33 PM",
"name": "ROOT-for-pub",
"primaryStorageUuid": "cae8726c90784ba0946f852952731268",
"rootImageUuid": "e29e00c1d18a486b8802a8f53c6a6e4f",
"size": 4195352576,
"state": "Enabled",
"status": "Ready",
"type": "Root",
"uuid": "c33a897db91e461a9cbc011b0aa441c9",
"vmInstanceUuid": "7096021b405e41a2afa22d0f6d7ab6f8"
}
],
"success": true
}云盘快照清单(VolumeSnapshot Inventory)
| 名字 | 描述 | 可选的 | 可选的参数值 | 起始支持版本 |
|---|---|---|---|---|
| uuid | 请参见 资源属性 | 0.6 | ||
| name | 请参见 资源属性 | 0.6 | ||
| description | 请参见 资源属性 | 是 | 0.6 | |
| format | 请参见 format | 0.6 | ||
| groupUuid | 0.6 | |||
| latest | 0.6 | |||
| parentUuid | 0.6 | |||
| primaryStorageInstallPath | 0.6 | |||
| primaryStorageUuid | 云盘所在的主存储的uuid， 请参见 primary storage | 0.6 | ||
| size | 云盘的虚拟大小， 单位是字节 | 0.6 | ||
| state | 请参见 state | 0.6 | ||
| status | 请参见 status | 0.6 | ||
| treeUuid | 快照树UUID | 0.6 | ||
| type | 云盘的虚拟化类型 | 0.6 | ||
| volumeType | 云盘类型 |
|
0.6 | |
| volumeUuid | 云盘UUID | 0.6 | ||
| groupBy | 以字段分组，相当于MySQL中的group by关键字。例如groupBy=type | 是 | 0.6 | |
| createDate | 请参见 资源属性 | 0.6 | ||
| lastOpDate | 请参见 资源属性 | 0.6 | ||
| userTags | 用户标签，请参见 创建用户标签(CreateUserTag) | 是 | 0.6 | |
| systemTags | 系统标签，请参见 创建系统标签(CreateSystemTag) | 是 | 0.6 |
示例
{
"inventories": [
{
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:26:00 PM",
"description": "",
"format": "qcow2",
"groupUuid": "d6939afab0824cab8e9a57a25686a7d4",
"lastOpDate": "Sep 12, 2019 5:26:18 PM",
"latest": false,
"name": "Snapshot-2-云盘-1",
"parentUuid": "d403f271636a488fbd25afd74ca589f8",
"primaryStorageInstallPath": "/Cloud_ps/dataVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-1b746a6adb584ee89c65ab51c3634416/snapshots/d403f271636a488fbd25afd74ca589f8.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 200704,
"state": "Enabled",
"status": "Ready",
"treeUuid": "864f7a38d38842968ebd7d40121ee25e",
"type": "Hypervisor",
"uuid": "2b47066db7c641019495204a39d00abb",
"volumeType": "Data",
"volumeUuid": "1b746a6adb584ee89c65ab51c3634416"
},
{
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:26:18 PM",
"description": "",
"format": "qcow2",
"groupUuid": "63854129e8aa42258aa83d0d9d45032c",
"lastOpDate": "Sep 12, 2019 5:26:28 PM",
"latest": false,
"name": "Snapshot-4-云盘-1",
"parentUuid": "2b47066db7c641019495204a39d00abb",
"primaryStorageInstallPath": "/Cloud_ps/dataVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-1b746a6adb584ee89c65ab51c3634416/snapshots/2b47066db7c641019495204a39d00abb.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 200704,
"state": "Enabled",
"status": "Ready",
"treeUuid": "864f7a38d38842968ebd7d40121ee25e",
"type": "Hypervisor",
"uuid": "75c17cf55b2a4a70877e274d5c5ec77b",
"volumeType": "Data",
"volumeUuid": "1b746a6adb584ee89c65ab51c3634416"
},
{
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:25:39 PM",
"description": "",
"format": "qcow2",
"groupUuid": "e5bad705d61a424aa703578f86ce8522",
"lastOpDate": "Sep 12, 2019 5:26:00 PM",
"latest": false,
"name": "Snapshot-1-ROOT-for-VM-1",
"primaryStorageInstallPath": "/Cloud_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-b2026ce722584b0383b247640e2961e2/b2026ce722584b0383b247640e2961e2.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 16781312,
"state": "Enabled",
"status": "Ready",
"treeUuid": "dd4dee32f5bc49b5a0c74a645d15d949",
"type": "Hypervisor",
"uuid": "ce2fe3b2faba4b32b1c2fadbd462cc6d",
"volumeType": "Root",
"volumeUuid": "b2026ce722584b0383b247640e2961e2"
},
{
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:25:39 PM",
"description": "",
"format": "qcow2",
"groupUuid": "e5bad705d61a424aa703578f86ce8522",
"lastOpDate": "Sep 12, 2019 5:26:00 PM",
"latest": false,
"name": "Snapshot-1-云盘-1",
"primaryStorageInstallPath": "/Cloud_ps/dataVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-1b746a6adb584ee89c65ab51c3634416/1b746a6adb584ee89c65ab51c3634416.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 6295552,
"state": "Enabled",
"status": "Ready",
"treeUuid": "864f7a38d38842968ebd7d40121ee25e",
"type": "Hypervisor",
"uuid": "d403f271636a488fbd25afd74ca589f8",
"volumeType": "Data",
"volumeUuid": "1b746a6adb584ee89c65ab51c3634416"
}
],
"success": true
}快照树清单(VolumeSnapshotTree Inventory)
| 名字 | 描述 | 可选的 | 可选的参数值 | 起始支持版本 |
|---|---|---|---|---|
| uuid | 请参见 资源属性 | 0.6 | ||
| current | 0.6 | |||
| tree | 0.6 | |||
| volumeUuid | 云盘UUID | 0.6 | ||
| status | 请参见 state | 0.6 | ||
| groupBy | 以字段分组，相当于MySQL中的group by关键字。例如groupBy=type | 是 | 0.6 | |
| createDate | 请参见 资源属性 | 0.6 | ||
| lastOpDate | 请参见 资源属性 | 0.6 | ||
| userTags | 用户标签，请参见 创建用户标签(CreateUserTag) | 是 | 0.6 | |
| systemTags | 系统标签，请参见 创建系统标签(CreateSystemTag) | 是 | 0.6 |
示例
{
"inventories": [
{
"createDate": "Sep 12, 2019 5:25:39 PM",
"current": true,
"lastOpDate": "Sep 12, 2019 5:26:28 PM",
"status": "Completed",
"tree": {
"children": [
{
"children": [
{
"children": [
{
"children": [],
"inventory": {
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:26:28 PM",
"description": "",
"format": "qcow2",
"groupUuid": "ce6bbd10e379472886e4d74448e43066",
"lastOpDate": "Sep 12, 2019 5:26:28 PM",
"latest": true,
"name": "Snapshot-5-云盘-1",
"parentUuid": "75c17cf55b2a4a70877e274d5c5ec77b",
"primaryStorageInstallPath": "/Cloud_ps/dataVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-1b746a6adb584ee89c65ab51c3634416/snapshots/75c17cf55b2a4a70877e274d5c5ec77b.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 200704,
"state": "Enabled",
"status": "Ready",
"treeUuid": "864f7a38d38842968ebd7d40121ee25e",
"type": "Hypervisor",
"uuid": "88864416e95846f68b5e881cdca1eedf",
"volumeType": "Data",
"volumeUuid": "1b746a6adb584ee89c65ab51c3634416"
},
"parentUuid": "75c17cf55b2a4a70877e274d5c5ec77b"
}
],
"inventory": {
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:26:18 PM",
"description": "",
"format": "qcow2",
"groupUuid": "63854129e8aa42258aa83d0d9d45032c",
"lastOpDate": "Sep 12, 2019 5:26:28 PM",
"latest": false,
"name": "Snapshot-4-云盘-1",
"parentUuid": "2b47066db7c641019495204a39d00abb",
"primaryStorageInstallPath": "/Cloud_ps/dataVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-1b746a6adb584ee89c65ab51c3634416/snapshots/2b47066db7c641019495204a39d00abb.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 200704,
"state": "Enabled",
"status": "Ready",
"treeUuid": "864f7a38d38842968ebd7d40121ee25e",
"type": "Hypervisor",
"uuid": "75c17cf55b2a4a70877e274d5c5ec77b",
"volumeType": "Data",
"volumeUuid": "1b746a6adb584ee89c65ab51c3634416"
},
"parentUuid": "2b47066db7c641019495204a39d00abb"
}
],
"inventory": {
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:26:00 PM",
"description": "",
"format": "qcow2",
"groupUuid": "d6939afab0824cab8e9a57a25686a7d4",
"lastOpDate": "Sep 12, 2019 5:26:18 PM",
"latest": false,
"name": "Snapshot-2-云盘-1",
"parentUuid": "d403f271636a488fbd25afd74ca589f8",
"primaryStorageInstallPath": "/Cloud_ps/dataVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-1b746a6adb584ee89c65ab51c3634416/snapshots/d403f271636a488fbd25afd74ca589f8.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 200704,
"state": "Enabled",
"status": "Ready",
"treeUuid": "864f7a38d38842968ebd7d40121ee25e",
"type": "Hypervisor",
"uuid": "2b47066db7c641019495204a39d00abb",
"volumeType": "Data",
"volumeUuid": "1b746a6adb584ee89c65ab51c3634416"
},
"parentUuid": "d403f271636a488fbd25afd74ca589f8"
}
],
"inventory": {
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:25:39 PM",
"description": "",
"format": "qcow2",
"groupUuid": "e5bad705d61a424aa703578f86ce8522",
"lastOpDate": "Sep 12, 2019 5:26:00 PM",
"latest": false,
"name": "Snapshot-1-云盘-1",
"primaryStorageInstallPath": "/Cloud_ps/dataVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-1b746a6adb584ee89c65ab51c3634416/1b746a6adb584ee89c65ab51c3634416.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 6295552,
"state": "Enabled",
"status": "Ready",
"treeUuid": "864f7a38d38842968ebd7d40121ee25e",
"type": "Hypervisor",
"uuid": "d403f271636a488fbd25afd74ca589f8",
"volumeType": "Data",
"volumeUuid": "1b746a6adb584ee89c65ab51c3634416"
}
},
"uuid": "864f7a38d38842968ebd7d40121ee25e",
"volumeUuid": "1b746a6adb584ee89c65ab51c3634416"
},
{
"createDate": "Sep 12, 2019 5:25:39 PM",
"current": true,
"lastOpDate": "Sep 12, 2019 5:26:28 PM",
"status": "Completed",
"tree": {
"children": [
{
"children": [
{
"children": [
{
"children": [
{
"children": [],
"inventory": {
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:26:28 PM",
"description": "",
"format": "qcow2",
"groupUuid": "ce6bbd10e379472886e4d74448e43066",
"lastOpDate": "Sep 12, 2019 5:26:28 PM",
"latest": true,
"name": "Snapshot-5-ROOT-for-VM-1",
"parentUuid": "6daba46d758445d4af7812738ba93e7d",
"primaryStorageInstallPath": "/Cloud_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-b2026ce722584b0383b247640e2961e2/snapshots/6daba46d758445d4af7812738ba93e7d.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 200704,
"state": "Enabled",
"status": "Ready",
"treeUuid": "dd4dee32f5bc49b5a0c74a645d15d949",
"type": "Hypervisor",
"uuid": "9eac8e8d51fc450d91e713bc4fdd20a2",
"volumeType": "Root",
"volumeUuid": "b2026ce722584b0383b247640e2961e2"
},
"parentUuid": "6daba46d758445d4af7812738ba93e7d"
}
],
"inventory": {
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:26:18 PM",
"description": "",
"format": "qcow2",
"groupUuid": "63854129e8aa42258aa83d0d9d45032c",
"lastOpDate": "Sep 12, 2019 5:26:28 PM",
"latest": false,
"name": "Snapshot-4-ROOT-for-VM-1",
"parentUuid": "d0ea588f6c5d4e539a54ff4f64112e86",
"primaryStorageInstallPath": "/Cloud_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-b2026ce722584b0383b247640e2961e2/snapshots/d0ea588f6c5d4e539a54ff4f64112e86.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 200704,
"state": "Enabled",
"status": "Ready",
"treeUuid": "dd4dee32f5bc49b5a0c74a645d15d949",
"type": "Hypervisor",
"uuid": "6daba46d758445d4af7812738ba93e7d",
"volumeType": "Root",
"volumeUuid": "b2026ce722584b0383b247640e2961e2"
},
"parentUuid": "d0ea588f6c5d4e539a54ff4f64112e86"
}
],
"inventory": {
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:26:07 PM",
"description": "",
"format": "qcow2",
"lastOpDate": "Sep 12, 2019 5:26:18 PM",
"latest": false,
"name": "Snapshot-3",
"parentUuid": "400cabe156424e7282bb4606c40907dc",
"primaryStorageInstallPath": "/Cloud_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-b2026ce722584b0383b247640e2961e2/snapshots/400cabe156424e7282bb4606c40907dc.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 200704,
"state": "Enabled",
"status": "Ready",
"treeUuid": "dd4dee32f5bc49b5a0c74a645d15d949",
"type": "Hypervisor",
"uuid": "d0ea588f6c5d4e539a54ff4f64112e86",
"volumeType": "Root",
"volumeUuid": "b2026ce722584b0383b247640e2961e2"
},
"parentUuid": "400cabe156424e7282bb4606c40907dc"
}
],
"inventory": {
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:26:00 PM",
"description": "",
"format": "qcow2",
"groupUuid": "d6939afab0824cab8e9a57a25686a7d4",
"lastOpDate": "Sep 12, 2019 5:26:07 PM",
"latest": false,
"name": "Snapshot-2-ROOT-for-VM-1",
"parentUuid": "ce2fe3b2faba4b32b1c2fadbd462cc6d",
"primaryStorageInstallPath": "/Cloud_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-b2026ce722584b0383b247640e2961e2/snapshots/ce2fe3b2faba4b32b1c2fadbd462cc6d.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 200704,
"state": "Enabled",
"status": "Ready",
"treeUuid": "dd4dee32f5bc49b5a0c74a645d15d949",
"type": "Hypervisor",
"uuid": "400cabe156424e7282bb4606c40907dc",
"volumeType": "Root",
"volumeUuid": "b2026ce722584b0383b247640e2961e2"
},
"parentUuid": "ce2fe3b2faba4b32b1c2fadbd462cc6d"
}
],
"inventory": {
"backupStorageRefs": [],
"createDate": "Sep 12, 2019 5:25:39 PM",
"description": "",
"format": "qcow2",
"groupUuid": "e5bad705d61a424aa703578f86ce8522",
"lastOpDate": "Sep 12, 2019 5:26:00 PM",
"latest": false,
"name": "Snapshot-1-ROOT-for-VM-1",
"primaryStorageInstallPath": "/Cloud_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-b2026ce722584b0383b247640e2961e2/b2026ce722584b0383b247640e2961e2.qcow2",
"primaryStorageUuid": "b1296dc880984edeb6ec05d2c9d7e243",
"size": 16781312,
"state": "Enabled",
"status": "Ready",
"treeUuid": "dd4dee32f5bc49b5a0c74a645d15d949",
"type": "Hypervisor",
"uuid": "ce2fe3b2faba4b32b1c2fadbd462cc6d",
"volumeType": "Root",
"volumeUuid": "b2026ce722584b0383b247640e2961e2"
}
},
"uuid": "dd4dee32f5bc49b5a0c74a645d15d949",
"volumeUuid": "b2026ce722584b0383b247640e2961e2"
}
],
"success": true
}挂载的虚拟机（Attached VM）
数据云盘可以被挂载到正在运行的（Running）或者已经停止的（Stopped）云主机上， 但在同一时间一个云盘只能挂载到一个云主机上； 挂载后云盘的uuid会出现在vmInstanceUuid中。 数据云盘可以从一个云主机上卸载，然后挂载到另一个云主机上，但是这两个云主机需要是相同类型的虚拟机管理程序管理的。根云盘作为云主机的附属，不能卸载。
格式（Format）
云盘格式揭示了云盘和虚拟机管理程序之间的关系， 指示了该云盘可以挂载到哪种虚拟机管理程序管理的云主机上。
设备ID（Device ID）
设备号表明了云盘挂载到云主机的顺序。根云盘有固定的设备ID 0，因为第一个被挂载的云盘总是根云盘； 数据云盘则取决于挂载到云主机的顺序，可能有1， 2，3 …… N这样的设备ID。 设备ID可以用来识别云盘在客户操作系统（guest operating system）中的盘符（disk letter）； 例如，在Linux系统中， 0通常代表/dev/xvda， 1通常代表/dev/xvdb，依次类推。
可用状态（State）
云盘有两种可用状态：
- Enabled：
启用（Enabled）状态下，允许云盘被挂载到云主机上。
- Disabled：
禁用（Disabled）状态下，不允许云盘被挂载到云主机上； 然而，数据云盘总是可以被卸载，即使已经是禁用状态的数据云盘也可以被卸载。
连接状态（Status）
连接状态体现了云盘的生命周期：
- NotInstantiated：
数据云盘特有的状态。在这个连接状态中，数据云盘只存在于数据库的表记录中。NotInstantiated状态的数据云盘可以挂载到任何类型虚拟机管理程序管理的云主机上；当挂载到云主机上后，数据云盘的hypervisorType域会存储云主机对应的虚拟机管理程序类型，在主存储上被实例化为虚拟机管理程序类型的实际二进制文件，同时连接状态会改为就绪（Ready）；在这之后，这些数据云盘就只能被重新挂载到相同类型虚拟机管理程序管理的云主机上了。
- Ready：
在这种状态时，云盘已经在主存储上实例化；已就绪可以使用。
- Creating：
在这种状态时，正在从镜像或云盘快照创建云盘；未就绪不能使用。
连接状态转换图如Figure 1所示：Figure 1. 云盘连接状态转换图
