CLI搭建ZStack云平台

本章节将介绍如何使用zstack-cli命令搭建ZStack云平台。

本场景采用本地存储、镜像仓库、云路由网络、公有网络和管理网络共用。

基本流程：
  1. 使用zstack-cli初始化云平台
  2. 使用zstack-cli创建云路由网络
  3. 使用zstack-cli创建云主机
  4. 使用zstack-cli指定控制台密码、ha设置、云盘等参数来创建云主机

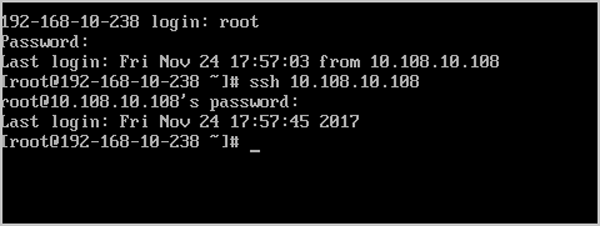

  5. 使用zstack-cli创建弹性IP并验证

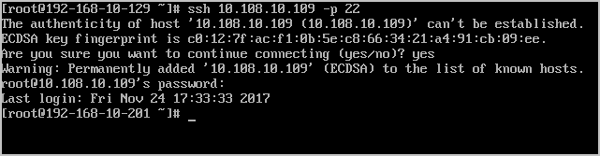

  6. 使用zstack-cli创建端口转发并验证
  1. 创建区域
    admin >>>CreateZone name=Zone-1
{
    "inventory": {
        "createDate": "Nov 24, 2017 4:20:33 PM",
        "lastOpDate": "Nov 24, 2017 4:20:33 PM",
        "name": "Zone-1",
        "state": "Enabled",
        "type": "zstack",
        "uuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  2. 在区域下创建集群
    admin >>>CreateCluster name=Cluster-1 zoneUuid=af67d572c1104768965120d19ed4c19a hypervisorType=KVM
{
    "inventory": {
        "createDate": "Nov 24, 2017 4:21:34 PM",
        "hypervisorType": "KVM",
        "lastOpDate": "Nov 24, 2017 4:21:34 PM",
        "name": "Cluster-1",
        "state": "Enabled",
        "type": "zstack",
        "uuid": "7cfa5479e92d4e9095a8010eda78fa55",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  3. 在区域的集群下添加物理主机
    admin >>>AddKVMHost name=Host-1 sshPort=22 username=root password=password clusterUuid=7cfa5479e92d4e9095a8010eda78fa55 managementIp=10.0.119.61
{
    "inventory": {
        "availableCpuCapacity": 40,
        "availableMemoryCapacity": 8186286080,
        "clusterUuid": "7cfa5479e92d4e9095a8010eda78fa55",
        "cpuNum": 4,
        "cpuSockets": 1,
        "createDate": "Nov 24, 2017 4:23:15 PM",
        "hypervisorType": "KVM",
        "lastOpDate": "Nov 24, 2017 4:23:40 PM",
        "managementIp": "10.0.119.61",
        "name": "Host-1",
        "sshPort": 22,
        "state": "Enabled",
        "status": "Connected",
        "totalCpuCapacity": 40,
        "totalMemoryCapacity": 8186286080,
        "username": "root",
        "uuid": "6dd772cadd314b3d93d2150fc70d112c",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  4. 在区域下添加本地主存储
    admin >>>AddLocalPrimaryStorage name=PS-1 url=/zstack_ps zoneUuid=af67d572c1104768965120d19ed4c19a
{
    "inventory": {
        "attachedClusterUuids": [],
        "availableCapacity": 0,
        "availablePhysicalCapacity": 0,
        "createDate": "Nov 24, 2017 4:25:02 PM",
        "lastOpDate": "Nov 24, 2017 4:25:02 PM",
        "mountPath": "/zstack_ps",
        "name": "PS-1",
        "state": "Enabled",
        "status": "Connected",
        "totalCapacity": 0,
        "totalPhysicalCapacity": 0,
        "type": "LocalStorage",
        "url": "/zstack_ps",
        "uuid": "f0b8633d067343598faf0c329be1834f",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}

    挂载本地主存储到集群

    admin >>>AttachPrimaryStorageToCluster primaryStorageUuid=f0b8633d067343598faf0c329be1834f clusterUuid=7cfa5479e92d4e9095a8010eda78fa55
{
    "inventory": {
        "attachedClusterUuids": [
            "7cfa5479e92d4e9095a8010eda78fa55"
        ],
        "availableCapacity": 78236143616,
        "availablePhysicalCapacity": 78236143616,
        "createDate": "Nov 24, 2017 4:25:02 PM",
        "lastOpDate": "Nov 24, 2017 4:25:02 PM",
        "mountPath": "/zstack_ps",
        "name": "PS-1",
        "state": "Enabled",
        "status": "Connected",
        "systemUsedCapacity": 20059684864,
        "totalCapacity": 98295828480,
        "totalPhysicalCapacity": 98295828480,
        "type": "LocalStorage",
        "url": "/zstack_ps",
        "uuid": "f0b8633d067343598faf0c329be1834f",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  5. 添加镜像服务器
    admin >>>AddImageStoreBackupStorage name=BS-1 url=/zstack_bs username=root password=password hostname=10.0.119.61
{
    "inventory": {
        "attachedZoneUuids": [],
        "availableCapacity": 78234513408,
        "createDate": "Nov 24, 2017 4:28:27 PM",
        "hostname": "10.0.119.61",
        "lastOpDate": "Nov 24, 2017 4:28:34 PM",
        "name": "BS-1",
        "sshPort": 22,
        "state": "Enabled",
        "status": "Connected",
        "totalCapacity": 98295828480,
        "type": "ImageStoreBackupStorage",
        "url": "/zstack_bs",
        "username": "root",
        "uuid": "d2b7899877f24a07bd846036f18c95c8"
    },
    "success": true
}
    挂载镜像服务器到区域
    admin >>>AttachBackupStorageToZone backupStorageUuid=d2b7899877f24a07bd846036f18c95c8 zoneUuid=af67d572c1104768965120d19ed4c19a
{
    "inventory": {
        "attachedZoneUuids": [
            "af67d572c1104768965120d19ed4c19a"
        ],
        "availableCapacity": 78234513408,
        "createDate": "Nov 24, 2017 4:28:27 PM",
        "hostname": "10.0.119.61",
        "lastOpDate": "Nov 24, 2017 4:28:34 PM",
        "name": "BS-1",
        "sshPort": 22,
        "state": "Enabled",
        "status": "Connected",
        "totalCapacity": 98295828480,
        "type": "ImageStoreBackupStorage",
        "url": "/zstack_bs",
        "username": "root",
        "uuid": "d2b7899877f24a07bd846036f18c95c8"
    },
    "success": true
}
  6. 创建计算规格
    admin >>>CreateInstanceOffering name=InstanceOffering cpuNum=1 memorySize=1073741824
{
    "inventory": {
        "allocatorStrategy": "LeastVmPreferredHostAllocatorStrategy",
        "cpuNum": 1,
        "cpuSpeed": 0,
        "createDate": "Nov 24, 2017 4:30:22 PM",
        "lastOpDate": "Nov 24, 2017 4:30:22 PM",
        "memorySize": 1073741824,
        "name": "InstanceOffering",
        "sortKey": 0,
        "state": "Enabled",
        "type": "UserVm",
        "uuid": "ed3de28193e343b5ab27cb425318ff21"
    },
    "success": true
}
  7. 添加创建云主机的镜像
    admin >>>AddImage name=Image-1 url=http://192.168.200.100/mirror/diskimages/centos7.2-test-8G.qcow2 backupStorageUuids=d2b7899877f24a07bd846036f18c95c8 format=qcow2 platform=Linux
{
    "inventory": {
        "actualSize": 2618611200,
        "backupStorageRefs": [
            {
                "backupStorageUuid": "d2b7899877f24a07bd846036f18c95c8",
                "createDate": "Nov 24, 2017 4:32:55 PM",
                "imageUuid": "0d38fc48c0af4341bec4e19a35e7b55b",
                "installPath": "zstore://0d38fc48c0af4341bec4e19a35e7b55b/d27dcabb17adcd9c16f1ab6d1e705ca8a7bbdb89",
                "lastOpDate": "Nov 24, 2017 4:32:55 PM",
                "status": "Ready"
            }
        ],
        "createDate": "Nov 24, 2017 4:32:55 PM",
        "format": "qcow2",
        "lastOpDate": "Nov 24, 2017 4:35:23 PM",
        "md5Sum": "7905bd85897480da05ed619a7d3a468b86ece47bd31c9d5ff2baa21bee29388e",
        "mediaType": "RootVolumeTemplate",
        "name": "Image-1",
        "platform": "Linux",
        "size": 8589934592,
        "state": "Enabled",
        "status": "Ready",
        "system": false,
        "type": "zstack",
        "url": "http://192.168.200.100/mirror/diskimages/centos7.2-test-8G.qcow2",
        "uuid": "0d38fc48c0af4341bec4e19a35e7b55b"
    },
    "success": true
}
    添加云路由的镜像
    admin >>>AddImage name=VR url=http://192.168.200.100/mirror/diskimages/zstack-vrouter-latest.qcow2 backupStorageUuids=d2b7899877f24a07bd846036f18c95c8 format=qcow2 platform=Linux system=true
{
    "inventory": {
        "actualSize": 293641216,
        "backupStorageRefs": [
            {
                "backupStorageUuid": "d2b7899877f24a07bd846036f18c95c8",
                "createDate": "Nov 24, 2017 4:37:58 PM",
                "imageUuid": "81df8288d9054448b3518573f805a6b7",
                "installPath": "zstore://81df8288d9054448b3518573f805a6b7/6fe3929dee1ae47eee48fee8d4696463e6c7b829",
                "lastOpDate": "Nov 24, 2017 4:37:58 PM",
                "status": "Ready"
            }
        ],
        "createDate": "Nov 24, 2017 4:37:57 PM",
        "format": "qcow2",
        "lastOpDate": "Nov 24, 2017 4:38:44 PM",
        "md5Sum": "2371972fe83831b2c196801c04cd5afa651226ba3c3f872facd4e06c2a6aa6c5",
        "mediaType": "RootVolumeTemplate",
        "name": "VR",
        "platform": "Linux",
        "size": 8589934592,
        "state": "Enabled",
        "status": "Ready",
        "system": true,
        "type": "zstack",
        "url": "http://192.168.200.100/mirror/diskimages/zstack-vrouter-latest.qcow2",
        "uuid": "81df8288d9054448b3518573f805a6b7"
    },
    "success": true
}
  8. 在区域下创建二层公有网络
    admin >>>CreateL2NoVlanNetwork physicalInterface=eth0 zoneUuid=af67d572c1104768965120d19ed4c19a name=L2-pub
{
    "inventory": {
        "attachedClusterUuids": [],
        "createDate": "Nov 24, 2017 4:40:01 PM",
        "lastOpDate": "Nov 24, 2017 4:40:01 PM",
        "name": "L2-pub",
        "physicalInterface": "eth0",
        "type": "L2NoVlanNetwork",
        "uuid": "18e6f9183ab74c43bf6f54f4cb9ac619",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
    挂载二层公有网络到集群
    admin >>>AttachL2NetworkToCluster clusterUuid=7cfa5479e92d4e9095a8010eda78fa55 l2NetworkUuid=18e6f9183ab74c43bf6f54f4cb9ac619
{
    "inventory": {
        "attachedClusterUuids": [
            "7cfa5479e92d4e9095a8010eda78fa55"
        ],
        "createDate": "Nov 24, 2017 4:40:01 PM",
        "lastOpDate": "Nov 24, 2017 4:40:01 PM",
        "name": "L2-pub",
        "physicalInterface": "eth0",
        "type": "L2NoVlanNetwork",
        "uuid": "18e6f9183ab74c43bf6f54f4cb9ac619",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  9. 在区域下创建二层私有网络
    admin >>>CreateL2VlanNetwork name=L2-pri vlan=2763 physicalInterface=eth0 zoneUuid=af67d572c1104768965120d19ed4c19a
{
    "inventory": {
        "attachedClusterUuids": [],
        "createDate": "Nov 24, 2017 4:42:08 PM",
        "lastOpDate": "Nov 24, 2017 4:42:08 PM",
        "name": "L2-pri",
        "physicalInterface": "eth0",
        "type": "L2VlanNetwork",
        "uuid": "81c73ae08d2240dd95e378967c213c2e",
        "vlan": 2763,
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
    挂载二层私有网络到集群
    admin >>>AttachL2NetworkToCluster clusterUuid=7cfa5479e92d4e9095a8010eda78fa55 l2NetworkUuid=81c73ae08d2240dd95e378967c213c2e
{
    "inventory": {
        "attachedClusterUuids": [
            "7cfa5479e92d4e9095a8010eda78fa55"
        ],
        "createDate": "Nov 24, 2017 4:42:08 PM",
        "lastOpDate": "Nov 24, 2017 4:42:08 PM",
        "name": "L2-pri",
        "physicalInterface": "eth0",
        "type": "L2VlanNetwork",
        "uuid": "81c73ae08d2240dd95e378967c213c2e",
        "vlan": 2763,
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  10. 二层公有网络下创建三层公有网络
    admin >>>CreateL3Network name=L3-pub l2NetworkUuid=18e6f9183ab74c43bf6f54f4cb9ac619 category=Public system=false
{
    "inventory": {
        "category": "Public",
        "createDate": "Nov 24, 2017 4:44:07 PM",
        "ipRanges": [],
        "l2NetworkUuid": "18e6f9183ab74c43bf6f54f4cb9ac619",
        "lastOpDate": "Nov 24, 2017 4:44:07 PM",
        "name": "L3-pub",
        "networkServices": [],
        "state": "Enabled",
        "system": false,
        "type": "L3BasicNetwork",
        "uuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
    添加网络段
    admin >>>AddIpRange l3NetworkUuid=d701ff5f4e4c4cdf8779199c5d8d168d startIp=10.108.10.100 endIp=10.108.10.110 netmask=255.0.0.0 gateway=10.0.0.1 name=L3-PUB
{
    "inventory": {
        "createDate": "Nov 24, 2017 4:47:21 PM",
        "endIp": "10.108.10.110",
        "gateway": "10.0.0.1",
        "l3NetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
        "lastOpDate": "Nov 24, 2017 4:47:21 PM",
        "name": "L3-PUB",
        "netmask": "255.0.0.0",
        "networkCidr": "10.0.0.1/8",
        "startIp": "10.108.10.100",
        "uuid": "73b061cac86d40bfa49cda68b584d589"
    },
    "success": true
}
    添加DNS
    admin >>>AddDnsToL3Network l3NetworkUuid=d701ff5f4e4c4cdf8779199c5d8d168d dns=223.5.5.5
{
    "inventory": {
        "category": "Public",
        "createDate": "Nov 24, 2017 4:44:07 PM",
        "dns": [
            "223.5.5.5"
        ],
        "ipRanges": [
            {
                "createDate": "Nov 24, 2017 4:47:21 PM",
                "endIp": "10.108.10.110",
                "gateway": "10.0.0.1",
                "l3NetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
                "lastOpDate": "Nov 24, 2017 4:47:21 PM",
                "name": "L3-PUB",
                "netmask": "255.0.0.0",
                "networkCidr": "10.0.0.1/8",
                "startIp": "10.108.10.100",
                "uuid": "73b061cac86d40bfa49cda68b584d589"
            }
        ],
        "l2NetworkUuid": "18e6f9183ab74c43bf6f54f4cb9ac619",
        "lastOpDate": "Nov 24, 2017 4:44:07 PM",
        "name": "L3-pub",
        "networkServices": [],
        "state": "Enabled",
        "system": false,
        "type": "L3BasicNetwork",
        "uuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
    查询网络服务模块的UUID，用于提供扁平网络网络的网络服务模块UUID
    admin >>>QueryNetworkServiceProvider  name="Flat Network Service Provider"
{
    "inventories": [
        {
            "attachedL2NetworkUuids": [
                "81c73ae08d2240dd95e378967c213c2e",
                "18e6f9183ab74c43bf6f54f4cb9ac619"
            ],
            "createDate": "Nov 13, 2017 3:01:53 PM",
            "description": "Flat Network Service Provider",
            "lastOpDate": "Nov 13, 2017 3:01:53 PM",
            "name": "Flat Network Service Provider",
            "networkServiceTypes": [
                "Userdata",
                "Eip",
                "DHCP"
            ],
            "type": "Flat",
            "uuid": "3d46e334773845adac0d90c86a5999ee"
        }
    ],
    "success": true
}
    挂载网络服务到三层公有网络，此时公有网络可用于创建云主机
    admin >>>AttachNetworkServiceToL3Network l3NetworkUuid=d701ff5f4e4c4cdf8779199c5d8d168d networkServices="{'3d46e334773845adac0d90c86a5999ee':['Userdata','Eip','DHCP']}"
{
    "inventory": {
        "category": "Public",
        "createDate": "Nov 24, 2017 4:44:07 PM",
        "dns": [
            "223.5.5.5"
        ],
        "ipRanges": [
            {
                "createDate": "Nov 24, 2017 4:47:21 PM",
                "endIp": "10.108.10.110",
                "gateway": "10.0.0.1",
                "l3NetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
                "lastOpDate": "Nov 24, 2017 4:47:21 PM",
                "name": "L3-PUB",
                "netmask": "255.0.0.0",
                "networkCidr": "10.0.0.1/8",
                "startIp": "10.108.10.100",
                "uuid": "73b061cac86d40bfa49cda68b584d589"
            }
        ],
        "l2NetworkUuid": "18e6f9183ab74c43bf6f54f4cb9ac619",
        "lastOpDate": "Nov 24, 2017 4:44:07 PM",
        "name": "L3-pub",
        "networkServices": [
            {
                "l3NetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
                "networkServiceProviderUuid": "3d46e334773845adac0d90c86a5999ee",
                "networkServiceType": "Eip"
            },
            {
                "l3NetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
                "networkServiceProviderUuid": "3d46e334773845adac0d90c86a5999ee",
                "networkServiceType": "DHCP"
            },
            {
                "l3NetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
                "networkServiceProviderUuid": "3d46e334773845adac0d90c86a5999ee",
                "networkServiceType": "Userdata"
            }
        ],
        "state": "Enabled",
        "system": false,
        "type": "L3BasicNetwork",
        "uuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  11. 使用三层公有网络同时作为公有网络和管理网络，创建云路由规格，使用之前添加的云路由镜像
    admin >>>CreateVirtualRouterOffering cpuNum=2 memorySize=2147483648 imageUuid=81df8288d9054448b3518573f805a6b7 managementNetworkUuid=d701ff5f4e4c4cdf8779199c5d8d168d publicNetworkUuid=d701ff5f4e4c4cdf8779199c5d8d168d name=VR-Offering zoneUuid=af67d572c1104768965120d19ed4c19a
{
    "inventory": {
        "allocatorStrategy": "LeastVmPreferredHostAllocatorStrategy",
        "cpuNum": 2,
        "cpuSpeed": 0,
        "createDate": "Nov 24, 2017 4:55:14 PM",
        "imageUuid": "81df8288d9054448b3518573f805a6b7",
        "isDefault": false,
        "lastOpDate": "Nov 24, 2017 4:55:14 PM",
        "managementNetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
        "memorySize": 2147483648,
        "name": "VR-Offering",
        "publicNetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
        "sortKey": 0,
        "state": "Enabled",
        "type": "VirtualRouter",
        "uuid": "9f68633082494b35a20551dd3805ea6b",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  12. 创建三层私有网络
    admin >>>CreateL3Network name=L3-pri l2NetworkUuid=81c73ae08d2240dd95e378967c213c2e category=Private
{
    "inventory": {
        "category": "Private",
        "createDate": "Nov 24, 2017 4:56:37 PM",
        "ipRanges": [],
        "l2NetworkUuid": "81c73ae08d2240dd95e378967c213c2e",
        "lastOpDate": "Nov 24, 2017 4:56:37 PM",
        "name": "L3-pri",
        "networkServices": [],
        "state": "Enabled",
        "system": false,
        "type": "L3BasicNetwork",
        "uuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
    添加网络段
    admin >>>AddIpRangeByNetworkCidr l3NetworkUuid=7bf9e3ee3f8f4765bc20331b1fc9251d networkCidr=192.168.10.0/24 name=L3-PRI
{
    "inventory": {
        "createDate": "Nov 24, 2017 4:58:11 PM",
        "endIp": "192.168.10.254",
        "gateway": "192.168.10.1",
        "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
        "lastOpDate": "Nov 24, 2017 4:58:11 PM",
        "name": "L3-PRI",
        "netmask": "255.255.255.0",
        "networkCidr": "192.168.10.0/24",
        "startIp": "192.168.10.2",
        "uuid": "89a731c83ae24738bec84916128af056"
    },
    "success": true
}
    添加DNS
    admin >>>AddDnsToL3Network l3NetworkUuid=7bf9e3ee3f8f4765bc20331b1fc9251d dns=223.5.5.5
{
    "inventory": {
        "category": "Private",
        "createDate": "Nov 24, 2017 4:56:37 PM",
        "dns": [
            "223.5.5.5"
        ],
        "ipRanges": [
            {
                "createDate": "Nov 24, 2017 4:58:11 PM",
                "endIp": "192.168.10.254",
                "gateway": "192.168.10.1",
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "lastOpDate": "Nov 24, 2017 4:58:11 PM",
                "name": "L3-PRI",
                "netmask": "255.255.255.0",
                "networkCidr": "192.168.10.0/24",
                "startIp": "192.168.10.2",
                "uuid": "89a731c83ae24738bec84916128af056"
            }
        ],
        "l2NetworkUuid": "81c73ae08d2240dd95e378967c213c2e",
        "lastOpDate": "Nov 24, 2017 4:56:37 PM",
        "name": "L3-pri",
        "networkServices": [],
        "state": "Enabled",
        "system": false,
        "type": "L3BasicNetwork",
        "uuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
    查询网络服务模块的UUID，用于提供云路由网络的网络服务模块UUID
    admin >>>QueryNetworkServiceProvider name="vrouter"
{
    "inventories": [
        {
            "attachedL2NetworkUuids": [
                "81c73ae08d2240dd95e378967c213c2e",
                "18e6f9183ab74c43bf6f54f4cb9ac619"
            ],
            "createDate": "Nov 13, 2017 3:01:53 PM",
            "description": "zstack vrouter network service provider",
            "lastOpDate": "Nov 13, 2017 3:01:53 PM",
            "name": "vrouter",
            "networkServiceTypes": [
                "IPsec",
                "VRouterRoute",
                "CentralizedDNS",
                "VipQos",
                "DNS",
                "SNAT",
                "LoadBalancer",
                "PortForwarding",
                "Eip",
                "DHCP"
            ],
            "type": "vrouter",
            "uuid": "a04998321fc44bf8a6050b93986329d3"
        }
    ],
    "success": true
}
    挂载网络服务到三层私有网络
    admin >>>AttachNetworkServiceToL3Network l3NetworkUuid=7bf9e3ee3f8f4765bc20331b1fc9251d networkServices="{'a04998321fc44bf8a6050b93986329d3':['IPsec','VRouterRoute','CentralizedDNS','VipQos','DNS','SNAT','LoadBalancer','PortForwarding','Eip','DHCP']}"
{
    "inventory": {
        "category": "Private",
        "createDate": "Nov 24, 2017 4:56:37 PM",
        "dns": [
            "223.5.5.5"
        ],
        "ipRanges": [
            {
                "createDate": "Nov 24, 2017 4:58:11 PM",
                "endIp": "192.168.10.254",
                "gateway": "192.168.10.1",
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "lastOpDate": "Nov 24, 2017 4:58:11 PM",
                "name": "L3-PRI",
                "netmask": "255.255.255.0",
                "networkCidr": "192.168.10.0/24",
                "startIp": "192.168.10.2",
                "uuid": "89a731c83ae24738bec84916128af056"
            }
        ],
        "l2NetworkUuid": "81c73ae08d2240dd95e378967c213c2e",
        "lastOpDate": "Nov 24, 2017 4:56:37 PM",
        "name": "L3-pri",
        "networkServices": [
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "PortForwarding"
            },
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "VipQos"
            },
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "DNS"
            },
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "VRouterRoute"
            },
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "SNAT"
            },
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "IPsec"
            },
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "LoadBalancer"
            },
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "Eip"
            },
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "CentralizedDNS"
            },
            {
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "networkServiceProviderUuid": "a04998321fc44bf8a6050b93986329d3",
                "networkServiceType": "DHCP"
            }
        ],
        "state": "Enabled",
        "system": false,
        "type": "L3BasicNetwork",
        "uuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
    创建系统标签，使云路由规格和三层私有网络关联
    admin >>>CreateSystemTag resourceUuid=9f68633082494b35a20551dd3805ea6b tag="guestL3Network::7bf9e3ee3f8f4765bc20331b1fc9251d" resourceType=InstanceOfferingVO
{
    "inventory": {
        "createDate": "Nov 24, 2017 5:04:11 PM",
        "inherent": false,
        "lastOpDate": "Nov 24, 2017 5:04:11 PM",
        "resourceType": "InstanceOfferingVO",
        "resourceUuid": "9f68633082494b35a20551dd3805ea6b",
        "tag": "guestL3Network::7bf9e3ee3f8f4765bc20331b1fc9251d",
        "type": "System",
        "uuid": "09c558c2023647a6820673382a4ac9ce"
    },
    "success": true
}
  13. 创建云盘规格
    admin >>>CreateDiskOffering name=Data-Volumn-Offering diskSize=10737418240
{
    "inventory": {
        "allocatorStrategy": "DefaultPrimaryStorageAllocationStrategy",
        "createDate": "Nov 24, 2017 5:05:35 PM",
        "diskSize": 10737418240,
        "lastOpDate": "Nov 24, 2017 5:05:35 PM",
        "name": "Data-Volumn-Offering",
        "sortKey": 0,
        "state": "Enabled",
        "type": "DefaultDiskOfferingType",
        "uuid": "40b562ef06c44e1897681c02fd354416"
    },
    "success": true
}
  14. 创建云主机，使用原本添加的镜像UUID、计算规格和网络选项
    admin >>>CreateVmInstance name=VM-1 instanceOfferingUuid=ed3de28193e343b5ab27cb425318ff21 imageUuid=0d38fc48c0af4341bec4e19a35e7b55b l3NetworkUuids=7bf9e3ee3f8f4765bc20331b1fc9251d
{
    "inventory": {
        "allVolumes": [
            {
                "actualSize": 2618611200,
                "createDate": "Nov 24, 2017 5:08:02 PM",
                "description": "Root volume for VM[uuid:143440faca89413e8b6094c9e1b12157]",
                "deviceId": 0,
                "format": "qcow2",
                "installPath": "/zstack_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-3ab0afbd82c6434dac7de11d0363abdb/3ab0afbd82c6434dac7de11d0363abdb.qcow2",
                "isShareable": false,
                "lastOpDate": "Nov 24, 2017 5:08:02 PM",
                "name": "ROOT-for-VM-1",
                "primaryStorageUuid": "f0b8633d067343598faf0c329be1834f",
                "rootImageUuid": "0d38fc48c0af4341bec4e19a35e7b55b",
                "size": 8589934592,
                "state": "Enabled",
                "status": "Ready",
                "type": "Root",
                "uuid": "3ab0afbd82c6434dac7de11d0363abdb",
                "vmInstanceUuid": "143440faca89413e8b6094c9e1b12157"
            }
        ],
        "allocatorStrategy": "LeastVmPreferredHostAllocatorStrategy",
        "clusterUuid": "7cfa5479e92d4e9095a8010eda78fa55",
        "cpuNum": 1,
        "cpuSpeed": 0,
        "createDate": "Nov 24, 2017 5:08:01 PM",
        "defaultL3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
        "hostUuid": "6dd772cadd314b3d93d2150fc70d112c",
        "hypervisorType": "KVM",
        "imageUuid": "0d38fc48c0af4341bec4e19a35e7b55b",
        "instanceOfferingUuid": "ed3de28193e343b5ab27cb425318ff21",
        "lastHostUuid": "6dd772cadd314b3d93d2150fc70d112c",
        "lastOpDate": "Nov 24, 2017 5:09:17 PM",
        "memorySize": 1073741824,
        "name": "VM-1",
        "platform": "Linux",
        "rootVolumeUuid": "3ab0afbd82c6434dac7de11d0363abdb",
        "state": "Running",
        "type": "UserVm",
        "uuid": "143440faca89413e8b6094c9e1b12157",
        "vmNics": [
            {
                "createDate": "Nov 24, 2017 5:08:02 PM",
                "deviceId": 0,
                "gateway": "192.168.10.1",
                "ip": "192.168.10.129",
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "lastOpDate": "Nov 24, 2017 5:08:02 PM",
                "mac": "fa:af:40:4b:39:00",
                "netmask": "255.255.255.0",
                "uuid": "c42be9f56798419fadfa0f34475c9b4a",
                "vmInstanceUuid": "143440faca89413e8b6094c9e1b12157"
            }
        ],
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  15. 创建云主机，使用原本添加的镜像UUID、计算规格和网络选项，并指定数据盘规格、集群、物理主机、控制台密码、ha neverstop开启、指定数据盘的主存储等选项
    admin >>>CreateVmInstance name=VM-2 instanceOfferingUuid=ed3de28193e343b5ab27cb425318ff21 imageUuid=0d38fc48c0af4341bec4e19a35e7b55b l3NetworkUuids=7bf9e3ee3f8f4765bc20331b1fc9251d dataDiskOfferingUuids=40b562ef06c44e1897681c02fd354416 clusterUuid=7cfa5479e92d4e9095a8010eda78fa55 hostUuid=6dd772cadd314b3d93d2150fc70d112c systemTags="consolePassword::123456","ha::NeverStop","vmConsoleMode::vnc","primaryStorageUuidForDataVolume::f0b8633d067343598faf0c329be1834f"
{
    "inventory": {
        "allVolumes": [
            {
                "actualSize": 0,
                "createDate": "Nov 24, 2017 5:13:04 PM",
                "description": "DataVolume-effeb1b473334dc48773befe5301292b",
                "deviceId": 1,
                "diskOfferingUuid": "40b562ef06c44e1897681c02fd354416",
                "format": "qcow2",
                "installPath": "/zstack_ps/dataVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-9a11ebdc1b074aea82292e148c8be4d6/9a11ebdc1b074aea82292e148c8be4d6.qcow2",
                "isShareable": false,
                "lastOpDate": "Nov 24, 2017 5:13:04 PM",
                "name": "DATA-for-VM-2",
                "primaryStorageUuid": "f0b8633d067343598faf0c329be1834f",
                "size": 10737418240,
                "state": "Enabled",
                "status": "Ready",
                "type": "Data",
                "uuid": "9a11ebdc1b074aea82292e148c8be4d6",
                "vmInstanceUuid": "effeb1b473334dc48773befe5301292b"
            },
            {
                "actualSize": 2618611200,
                "createDate": "Nov 24, 2017 5:13:04 PM",
                "description": "Root volume for VM[uuid:effeb1b473334dc48773befe5301292b]",
                "deviceId": 0,
                "format": "qcow2",
                "installPath": "/zstack_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-c82422eae86e4eb8bea225e860d62444/c82422eae86e4eb8bea225e860d62444.qcow2",
                "isShareable": false,
                "lastOpDate": "Nov 24, 2017 5:13:04 PM",
                "name": "ROOT-for-VM-2",
                "primaryStorageUuid": "f0b8633d067343598faf0c329be1834f",
                "rootImageUuid": "0d38fc48c0af4341bec4e19a35e7b55b",
                "size": 8589934592,
                "state": "Enabled",
                "status": "Ready",
                "type": "Root",
                "uuid": "c82422eae86e4eb8bea225e860d62444",
                "vmInstanceUuid": "effeb1b473334dc48773befe5301292b"
            }
        ],
        "allocatorStrategy": "LeastVmPreferredHostAllocatorStrategy",
        "clusterUuid": "7cfa5479e92d4e9095a8010eda78fa55",
        "cpuNum": 1,
        "cpuSpeed": 0,
        "createDate": "Nov 24, 2017 5:13:04 PM",
        "defaultL3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
        "hostUuid": "6dd772cadd314b3d93d2150fc70d112c",
        "hypervisorType": "KVM",
        "imageUuid": "0d38fc48c0af4341bec4e19a35e7b55b",
        "instanceOfferingUuid": "ed3de28193e343b5ab27cb425318ff21",
        "lastHostUuid": "6dd772cadd314b3d93d2150fc70d112c",
        "lastOpDate": "Nov 24, 2017 5:13:16 PM",
        "memorySize": 1073741824,
        "name": "VM-2",
        "platform": "Linux",
        "rootVolumeUuid": "c82422eae86e4eb8bea225e860d62444",
        "state": "Running",
        "type": "UserVm",
        "uuid": "effeb1b473334dc48773befe5301292b",
        "vmNics": [
            {
                "createDate": "Nov 24, 2017 5:13:04 PM",
                "deviceId": 0,
                "gateway": "192.168.10.1",
                "ip": "192.168.10.201",
                "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                "lastOpDate": "Nov 24, 2017 5:13:04 PM",
                "mac": "fa:be:4f:fb:db:00",
                "netmask": "255.255.255.0",
                "uuid": "92e6d8b564654efebd17ecade2d48aa9",
                "vmInstanceUuid": "effeb1b473334dc48773befe5301292b"
            }
        ],
        "zoneUuid": "af67d572c1104768965120d19ed4c19a"
    },
    "success": true
}
  16. 创建弹性IP服务
    1. 创建虚拟IP，获取其UUID
      admin >>>CreateVip name=VIP-EIP l3NetworkUuid=d701ff5f4e4c4cdf8779199c5d8d168d
{
    "inventory": {
        "createDate": "Nov 24, 2017 5:14:29 PM",
        "gateway": "10.0.0.1",
        "ip": "10.108.10.108",
        "l3NetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
        "lastOpDate": "Nov 24, 2017 5:14:29 PM",
        "name": "VIP-EIP",
        "netmask": "255.0.0.0",
        "state": "Enabled",
        "uuid": "db4d627e2f7f4be8bbd626240e31a521"
    },
    "success": true
}
    2. 创建弹性IP，获取其UUID
      admin >>>CreateEip name=EIP vipUuid=db4d627e2f7f4be8bbd626240e31a521
{
    "inventory": {
        "createDate": "Nov 24, 2017 5:15:18 PM",
        "lastOpDate": "Nov 24, 2017 5:15:18 PM",
        "name": "EIP",
        "state": "Enabled",
        "uuid": "e60a1580bc0240518241594f3570218e",
        "vipIp": "10.108.10.108",
        "vipUuid": "db4d627e2f7f4be8bbd626240e31a521"
    },
    "success": true
}
    3. 查询云主机VM-1的vmNics的UUID
      admin >>>QueryVmInstance name=VM-1
{
    "inventories": [
        {
            "allVolumes": [
                {
                    "actualSize": 2618611200,
                    "createDate": "Nov 24, 2017 5:08:02 PM",
                    "description": "Root volume for VM[uuid:143440faca89413e8b6094c9e1b12157]",
                    "deviceId": 0,
                    "format": "qcow2",
                    "installPath": "/zstack_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-3ab0afbd82c6434dac7de11d0363abdb/3ab0afbd82c6434dac7de11d0363abdb.qcow2",
                    "isShareable": false,
                    "lastOpDate": "Nov 24, 2017 5:08:02 PM",
                    "name": "ROOT-for-VM-1",
                    "primaryStorageUuid": "f0b8633d067343598faf0c329be1834f",
                    "rootImageUuid": "0d38fc48c0af4341bec4e19a35e7b55b",
                    "size": 8589934592,
                    "state": "Enabled",
                    "status": "Ready",
                    "type": "Root",
                    "uuid": "3ab0afbd82c6434dac7de11d0363abdb",
                    "vmInstanceUuid": "143440faca89413e8b6094c9e1b12157"
                }
            ],
            "allocatorStrategy": "LeastVmPreferredHostAllocatorStrategy",
            "clusterUuid": "7cfa5479e92d4e9095a8010eda78fa55",
            "cpuNum": 1,
            "cpuSpeed": 0,
            "createDate": "Nov 24, 2017 5:08:01 PM",
            "defaultL3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
            "hostUuid": "6dd772cadd314b3d93d2150fc70d112c",
            "hypervisorType": "KVM",
            "imageUuid": "0d38fc48c0af4341bec4e19a35e7b55b",
            "instanceOfferingUuid": "ed3de28193e343b5ab27cb425318ff21",
            "lastHostUuid": "6dd772cadd314b3d93d2150fc70d112c",
            "lastOpDate": "Nov 24, 2017 5:09:17 PM",
            "memorySize": 1073741824,
            "name": "VM-1",
            "platform": "Linux",
            "rootVolumeUuid": "3ab0afbd82c6434dac7de11d0363abdb",
            "state": "Running",
            "type": "UserVm",
            "uuid": "143440faca89413e8b6094c9e1b12157",
            "vmNics": [
                {
                    "createDate": "Nov 24, 2017 5:08:02 PM",
                    "deviceId": 0,
                    "gateway": "192.168.10.1",
                    "ip": "192.168.10.129",
                    "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                    "lastOpDate": "Nov 24, 2017 5:08:02 PM",
                    "mac": "fa:af:40:4b:39:00",
                    "netmask": "255.255.255.0",
                    "uuid": "c42be9f56798419fadfa0f34475c9b4a",
                    "vmInstanceUuid": "143440faca89413e8b6094c9e1b12157"
                }
            ],
            "zoneUuid": "af67d572c1104768965120d19ed4c19a"
        }
    ],
    "success": true
}
    4. 绑定弹性IP到云主机网卡
      admin >>>AttachEip eipUuid=e60a1580bc0240518241594f3570218e vmNicUuid=c42be9f56798419fadfa0f34475c9b4a
{
    "inventory": {
        "createDate": "Nov 24, 2017 5:15:18 PM",
        "guestIp": "192.168.10.129",
        "lastOpDate": "Nov 24, 2017 5:17:16 PM",
        "name": "EIP",
        "state": "Enabled",
        "uuid": "e60a1580bc0240518241594f3570218e",
        "vipIp": "10.108.10.108",
        "vipUuid": "db4d627e2f7f4be8bbd626240e31a521",
        "vmNicUuid": "c42be9f56798419fadfa0f34475c9b4a"
    },
    "success": true
}
    5. SSH登录到弹性IP地址检查弹性IP是否可用
      如Figure 1所示：
      Figure 1. 通过弹性IP登录云主机VM-1


  17. 创建端口转发服务
    1. 创建虚拟IP，获取其UUID
      admin >>>CreateVip name=PF l3NetworkUuid=d701ff5f4e4c4cdf8779199c5d8d168d
{
    "inventory": {
        "createDate": "Nov 24, 2017 5:28:11 PM",
        "gateway": "10.0.0.1",
        "ip": "10.108.10.109",
        "l3NetworkUuid": "d701ff5f4e4c4cdf8779199c5d8d168d",
        "lastOpDate": "Nov 24, 2017 5:28:11 PM",
        "name": "PF",
        "netmask": "255.0.0.0",
        "state": "Enabled",
        "uuid": "2898660b07b54832b2d39c285acd803c"
    },
    "success": true
}
    2. 创建端口转发服务，指定端口范围
      admin >>>CreatePortForwardingRule name=PF vipUuid=2898660b07b54832b2d39c285acd803c vipPortStart=22 vipPortEnd=80 protocolType=TCP
{
    "inventory": {
        "name": "PF",
        "privatePortEnd": 80,
        "privatePortStart": 22,
        "protocolType": "TCP",
        "state": "Enabled",
        "uuid": "03a54bf2ec3a4252a51cada88298fd0c",
        "vipIp": "10.108.10.109",
        "vipPortEnd": 80,
        "vipPortStart": 22,
        "vipUuid": "2898660b07b54832b2d39c285acd803c"
    },
    "success": true
}
    3. 查询云主机VM-2的vmNics的UUID
      admin >>>QueryVmInstance name=VM-2
{
    "inventories": [
        {
            "allVolumes": [
                {
                    "actualSize": 2618611200,
                    "createDate": "Nov 24, 2017 5:13:04 PM",
                    "description": "Root volume for VM[uuid:effeb1b473334dc48773befe5301292b]",
                    "deviceId": 0,
                    "format": "qcow2",
                    "installPath": "/zstack_ps/rootVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-c82422eae86e4eb8bea225e860d62444/c82422eae86e4eb8bea225e860d62444.qcow2",
                    "isShareable": false,
                    "lastOpDate": "Nov 24, 2017 5:13:04 PM",
                    "name": "ROOT-for-VM-2",
                    "primaryStorageUuid": "f0b8633d067343598faf0c329be1834f",
                    "rootImageUuid": "0d38fc48c0af4341bec4e19a35e7b55b",
                    "size": 8589934592,
                    "state": "Enabled",
                    "status": "Ready",
                    "type": "Root",
                    "uuid": "c82422eae86e4eb8bea225e860d62444",
                    "vmInstanceUuid": "effeb1b473334dc48773befe5301292b"
                },
                {
                    "actualSize": 0,
                    "createDate": "Nov 24, 2017 5:13:04 PM",
                    "description": "DataVolume-effeb1b473334dc48773befe5301292b",
                    "deviceId": 1,
                    "diskOfferingUuid": "40b562ef06c44e1897681c02fd354416",
                    "format": "qcow2",
                    "installPath": "/zstack_ps/dataVolumes/acct-36c27e8ff05c4780bf6d2fa65700f22e/vol-9a11ebdc1b074aea82292e148c8be4d6/9a11ebdc1b074aea82292e148c8be4d6.qcow2",
                    "isShareable": false,
                    "lastOpDate": "Nov 24, 2017 5:13:04 PM",
                    "name": "DATA-for-VM-2",
                    "primaryStorageUuid": "f0b8633d067343598faf0c329be1834f",
                    "size": 10737418240,
                    "state": "Enabled",
                    "status": "Ready",
                    "type": "Data",
                    "uuid": "9a11ebdc1b074aea82292e148c8be4d6",
                    "vmInstanceUuid": "effeb1b473334dc48773befe5301292b"
                }
            ],
            "allocatorStrategy": "LeastVmPreferredHostAllocatorStrategy",
            "clusterUuid": "7cfa5479e92d4e9095a8010eda78fa55",
            "cpuNum": 1,
            "cpuSpeed": 0,
            "createDate": "Nov 24, 2017 5:13:04 PM",
            "defaultL3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
            "hostUuid": "6dd772cadd314b3d93d2150fc70d112c",
            "hypervisorType": "KVM",
            "imageUuid": "0d38fc48c0af4341bec4e19a35e7b55b",
            "instanceOfferingUuid": "ed3de28193e343b5ab27cb425318ff21",
            "lastHostUuid": "6dd772cadd314b3d93d2150fc70d112c",
            "lastOpDate": "Nov 24, 2017 5:13:16 PM",
            "memorySize": 1073741824,
            "name": "VM-2",
            "platform": "Linux",
            "rootVolumeUuid": "c82422eae86e4eb8bea225e860d62444",
            "state": "Running",
            "type": "UserVm",
            "uuid": "effeb1b473334dc48773befe5301292b",
            "vmNics": [
                {
                    "createDate": "Nov 24, 2017 5:13:04 PM",
                    "deviceId": 0,
                    "gateway": "192.168.10.1",
                    "ip": "192.168.10.201",
                    "l3NetworkUuid": "7bf9e3ee3f8f4765bc20331b1fc9251d",
                    "lastOpDate": "Nov 24, 2017 5:13:04 PM",
                    "mac": "fa:be:4f:fb:db:00",
                    "netmask": "255.255.255.0",
                    "uuid": "92e6d8b564654efebd17ecade2d48aa9",
                    "vmInstanceUuid": "effeb1b473334dc48773befe5301292b"
                }
            ],
            "zoneUuid": "af67d572c1104768965120d19ed4c19a"
        }
    ],
    "success": true
}
    4. 挂载端口转发规则到云主机的网卡
      admin >>>AttachPortForwardingRule vmNicUuid=92e6d8b564654efebd17ecade2d48aa9 ruleUuid=03a54bf2ec3a4252a51cada88298fd0c
{
    "inventory": {
        "createDate": "Nov 24, 2017 5:29:27 PM",
        "guestIp": "192.168.10.201",
        "lastOpDate": "Nov 24, 2017 5:30:52 PM",
        "name": "PF",
        "privatePortEnd": 80,
        "privatePortStart": 22,
        "protocolType": "TCP",
        "state": "Enabled",
        "uuid": "03a54bf2ec3a4252a51cada88298fd0c",
        "vipIp": "10.108.10.109",
        "vipPortEnd": 80,
        "vipPortStart": 22,
        "vipUuid": "2898660b07b54832b2d39c285acd803c",
        "vmNicUuid": "92e6d8b564654efebd17ecade2d48aa9"
    },
    "success": true
}
    5. SSH登录验证端口转发规则是否生效
      如Figure 2所示：
      Figure 2. 通过端口转发登录云主机VM-2


至此，使用zstack-cli命令搭建ZStack云平台介绍完毕。
