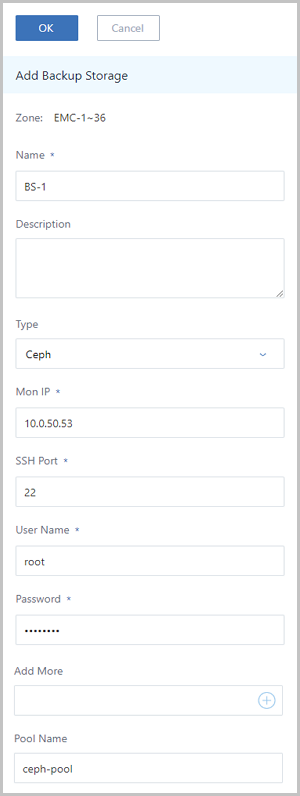

In the navigation pane of the ZStack Private Cloud UI, choose Hardware > Backup Storage. On the Backup Storage page, click
Add Backup Storage. On the displayed Add Backup
Storage page, set the following parameters:
Zone: By default, the current zone is displayed.
Name: Enter a name for the Ceph backup storage.
Description: Optional. Enter a description for the
Ceph backup storage.
Type: Select Ceph.
Mon IP: Enter an IP address of the Ceph monitor.
SSH Port: Enter an SSH port of the Ceph monitor.
Default port: 22.
User Name: Enter a user name of the Ceph
monitor.
Password: Enter a password corresponded by the user
name of the Ceph monitor.
Add More: Click the plus sign (⊕) to add more Ceph
monitors.
Pool Name: Optional. Enter a pool name.
Note:
A specific storage pool can be specified for the Ceph backup
storage. If null, the system will automatically create a pool
name for you by default.
If specified, make sure that you create storage pools in the
Ceph storage cluster in advance.
Note:
