A 3rd party alarm is mainly designed for monitoring and uniformly
pushing the 3rd-party alarm messages that you have taken over via various endpoints,
whereby achieving unified managements and enhancing operations and maintenance
efficiencies for these alarm messages.
To use the 3rd party alarm feature, go to Settings > Global Settings > Advanced, locate Switch for Third-Party Alarm, and set the
value to true.
3rd Party Alarm Page

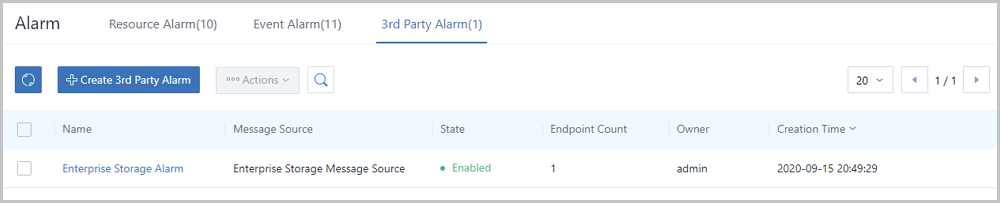

In the navigation pane of the ZStack Private Cloud UI, choose Platform O&M > ZWatch > Alarm > 3rd Party Alarm. Then, the 3rd Party Alarm page is displayed, as
shown in Figure 1.Figure 1. 3rd Party Alarm Page
Create 3rd Party Alarm
On the 3rd Party Alarm page, click Create 3rd Party
Alarm. On the displayed Create 3rd Party Alarm
page, set the following parameters:
Name: Enter a name for the 3rd
party alarm.
Message Source: Select a 3rd party message source to
be received.
Endpoint: Optional. If
not selected, an endpoint is not specified. If selected, alarm
messages will be sent to the specified endpoint.
Note:
You can add multiple endpoints.
You can either select a system default endpoint or
create an endpoint as needed.
For more information about how to create an endpoint,
see Endpoint.

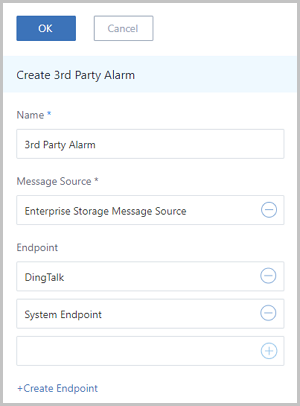

You can create a 3rd party alarm to receive alarm messages sent from third parties,
as shown in Figure 2.Figure 2. Create 3rd Party Alarm
3rd Party Alarm Operations
You can perform the following operations on a 3rd party alarm:
Add endpoint: Add an endpoint to the 3rd party alarm.
Remove endpoint: Remove an endpoint from the 3rd party alarm.
Delete: Delete the 3rd party alarm. Exercise caution. If you delete a 3rd
party alarm, all resources on the 3rd party alarm will be deleted as well.
This 3rd party alarm will not be triggered.
Check alarm log: Set a time range to check alarm logs sent by the 3rd party
alarm within the time range that you set.
Audit: Check related operations of this 3rd party alarm.
Note:
