Add Primary Storage | Shared Mount Point

In the navigation pane of the ZStack Private Cloud UI, choose Hardware > Primary Storage. On the Primary Storage page, click Add Primary Storage. On the displayed Add Primary Storage page, set the following parameters:

• Zone: By default, the current zone is displayed.
• Name: Enter a name for the primary storage.
• Description: Optional. Enter a description for the primary storage.
• Type: Select SharedMountPoint.
• URL: Enter the URL of the shared storage mounted by the host.
• Storage Network: Indicate the storage network specified for the shared storage. The storage network can be shared by the management network of the management node.
  Note:

  • If you have an independent storage network, you need to enter the CIDR of the storage network.
  • You can use this storage network to check the health status of a VM instance.
• Cluster: Select a cluster to mount the primary storage.

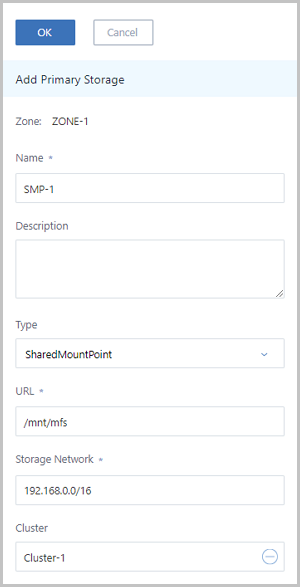

As shown in Figure 1.
